Submersible Cables

Submersible Cables

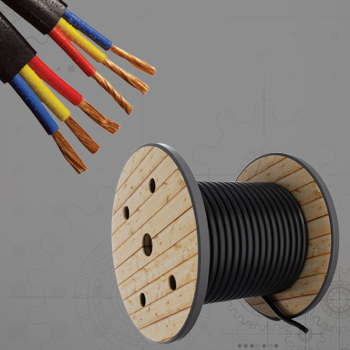

Three one flat cables are ideally suited for heavy duty applications in industries and submersible pumps, in which the sheathing must withstand abrasion and prevent ingress of water inside. The sheathing is made of special grade sheathing PVC which gives the required finish and strength.

Low Power Loss

Good Quality

Good Resistance

Best Insulation

Fireproof

Technical Data:

  • Conductor: Nicely bunched high purity bright, electrolytic grade, plain annealed copper with superb flexibility according to harmonized grades HO5V-K, HO7V-K, BS 6360 class 5 available in various sizes.
  • Insulation & Sheathing: Generally available with general purpose insulation and normal PVC sheathing, choice of insulation and sheathing is available on special order.
  • *The number and diameter of conductor strands are for reference only. Conductor resistance as per IS:8130 is the governing criteria. The above data is indicative and may be revised without prior information.

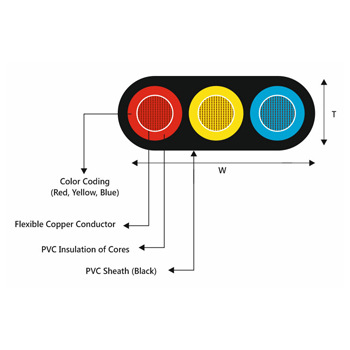

Nominal
Area of
Conductor		 INSULATION Overall Dimensions Max.
Conductor
Resistance
at 20C (Max.)		 Current
Carrying
Capacity
at 40C
Number
Size of Wire for
each Core		 Thickness(Nom.) Core
Dia
(Nom.) W		 Width T Thickness
Sq. mm mm mm mm (Nom.) mm (Nom.) mm Ohm/Km Amps.
1.50 22/0.3 0.6 0.9 10.7 5.3 12.1 14
2.50 36/0.3 0.7 1.0 13.0 6.2 7.41 18
4.00 56/0.30 0.8 1.0 15.3 7.1 4.95 26
6.00 84/0.30 0.8 1.1 19.2 8.4 3.3 31
10.00 140/0.30 1.0 1.4 24.2 10.4 1.91 42
16.00 226/0.30 1.0 1.4 29 12.4 1.21 57

Salient Features:

  • Better finish and strength for heavy duty applications.
  • Lower power consumption.
  • Meets international standards.
  • Every “meter length” is marked.
